Our Haverhill-Based Company Sells & Installs All Window Styles, Shapes and Sizes

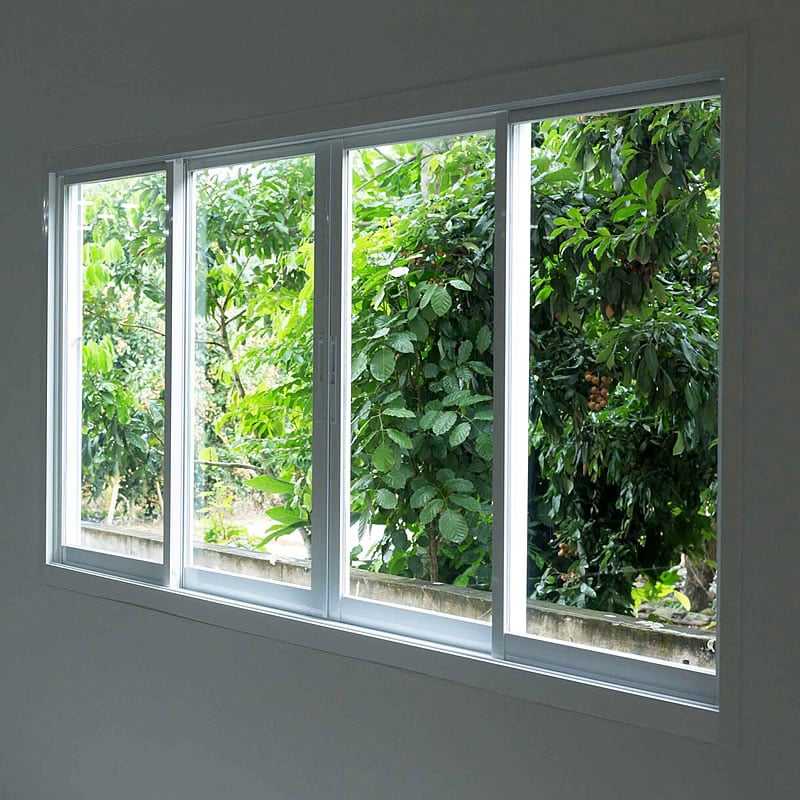

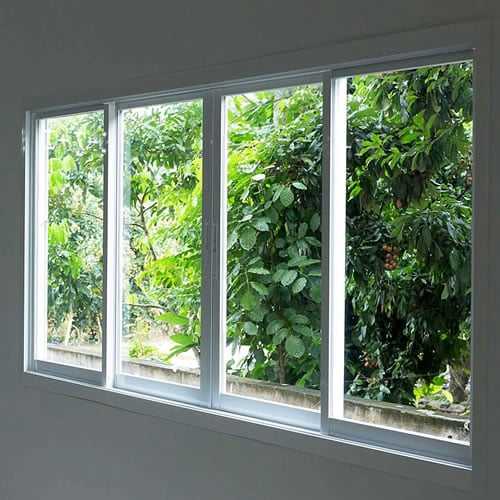

General: Horizontal Rolling Windows are Coastal thermally improved Series 1500 manufactured by Coastal Industries, Inc.
Material: All aluminum extrusions are 6063-T5 alloy with a minimal wall thickness of .062”. Insulation, when required, is provided by a poured-in-place polyurethane specially formulated for this purpose. Parting stops are black rigid vinyl extrusions. Sections are designed to provide complete thermal break in both frames and sash.
Construction: Frame is 3 1/4” in depth. Corners are coped and mechanically joined with screws. An integral fin frame is standard. A rigid vinyl parting stop at the frame head and a sill insert are provided to prevent thermal short circuit. Sill has baffled weep holes for drainage. Sash members are designed to accommodate 7/8” sealed insulating glass. Sash corners are semi-lap type mechanically joined with stainless steel screws at each corner.
Hardware: Moving sash is equipped with two steel ball bearing wheels mounted in nylon wheel housings which allow a vertical adjustment. The moving sash has an automatic spring-action latch and can be used in any vertical location.
Weatherstripping: Sash and frame are double weatherstripped using Fin-seal or Poly-bond with flexible vinyl as required.
Glazing: Series 1500 is glazed with 7/8” sealed insulating glass using “wrap-around” vinyl of the marine type.
Screens: Standard half screens have extruded aluminum frames with charcoal fiberglass cloth. Full screens are available on two-panel windows only.
Finish: Standard finish is baked acrylic enamel paint in either WHITE or BRONZE.
Available in white or bronze with 7/8″ insulated glass, clear, or colonial. Excellent for commercial or residential apartment buildings.
THERMAL BARRIER MINIMIZES CONDENSATION,
REDUCES COLD TRANSMISSION and
PROVIDES SUPERIOR INSULATION FROM COLD.
Thermal barrier minimizes condensation, reduces cold transmission and provides superior insulation from cold for residential, apartment, school, and industrial buildings

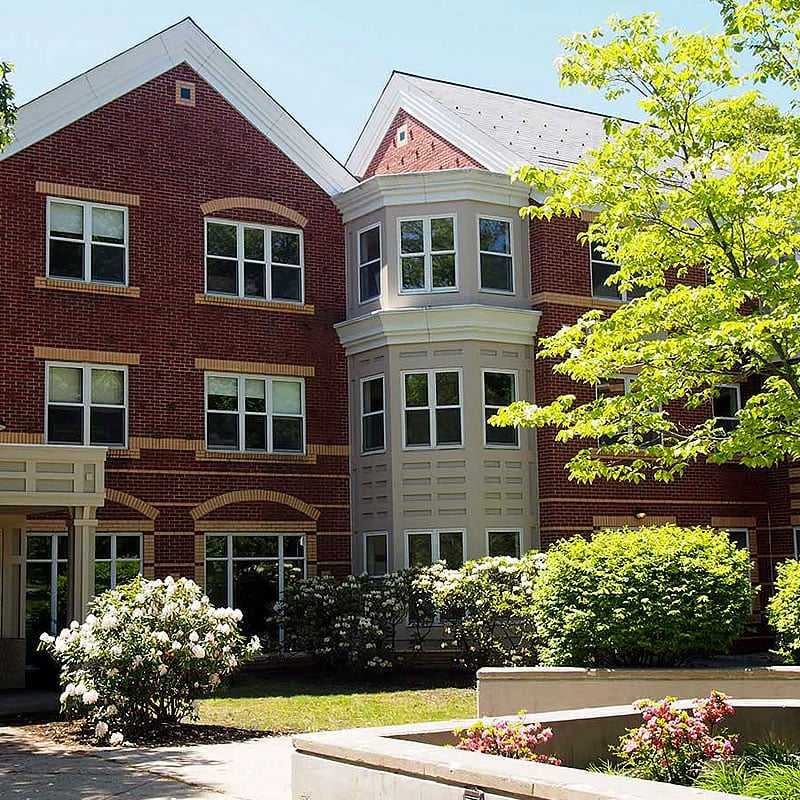

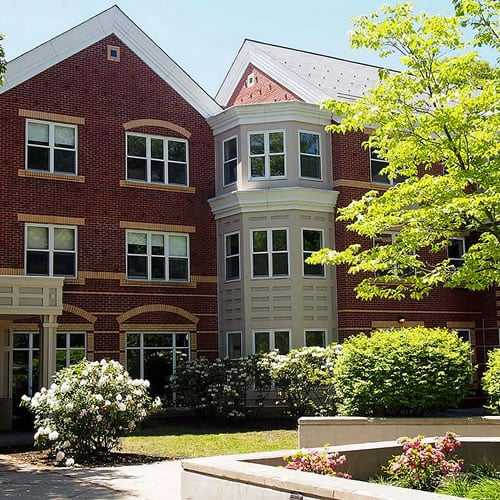

GENERAL: Double-hung windows shall be Coastal thermally improved Series 1300 manufactured by Coastal Industries Inc. and shall meet AAMA/WDMA/CSA 101/I.S.2/A440-11,NAFS 2011 – North American Fenestration Standard/Specification for Windows, Doors, and Skylights. Class CW-PG30 1422 x 2324 (56 x 91 1/2)-H
MATERIAL: All aluminum extrusions shall be 6063-T5 alloy having a nominal wall thickness of .062”, sill shall be .078”; insulation when required shall be provided by a poured-in-place polyurethane specially formulated for this purpose. Parting stops shall be black rigid vinyl extrusions. Sections shall be designed to provide complete thermal break in both frames and sash.
CONSTRUCTION: Frame shall be 3 1/4” in depth. Corners shall be butt joint construction and mechanically joined with screws. Sash members shall be designed to accommodate 7/8” sealed insulating glass. Sash corners shall be of a semi-lap type mechanically joined with stainless steel screws at each corner.
HARDWARE: Moving sash shall be equipped with two spiral balances with nylon swivel shoes. The moving sash shall have an automatic spring-action latch at top of top sash and two latches at bottom of bottom sash. All fas-teners shall be aluminum, stainless steel or non-corrosive material.
WEATHERSTRIPPING: Sash and frame shall be double weatherstripped using Fin-seal or Poly-bond with flexible vinyls as required. GLAZING: Series 1300 shall be glazed with 7/8” sealed insulating glass using wrap-around vinyl of the marine type. SCREENS: Screens shall have extruded aluminum frames with charcoal fiberglass cloth. Half-screen is standard, full screen is available.
FINISH: Standard finish shall be baked acrylic enamel paint in either WHITE or QUAKER BRONZE.
INSTALLATION: (BY OTHERS) All windows shall be installed without racking, binding, forcing or distorting of frames or sash. Sill shall be level and jambs plumb. All caulking shall be sufficient to provide a water tight perimeter seal. It shall not be the responsibility.
Available in WHITE or BRONZE
with 7/8” INSULATING GLASS
for RESIDENTIAL, APARTMENT, SCHOOL and
INDUSTRIAL BUILDINGS.
THERMAL BARRIER MINIMIZES CONDENSATION,
REDUCES COLD TRANSMISSION and
PROVIDES SUPERIOR INSULATION FROM COLD.

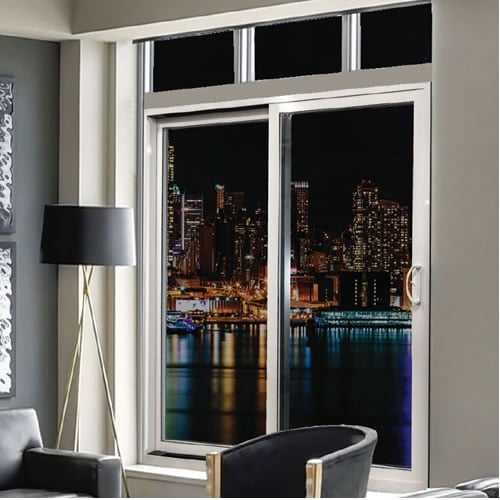

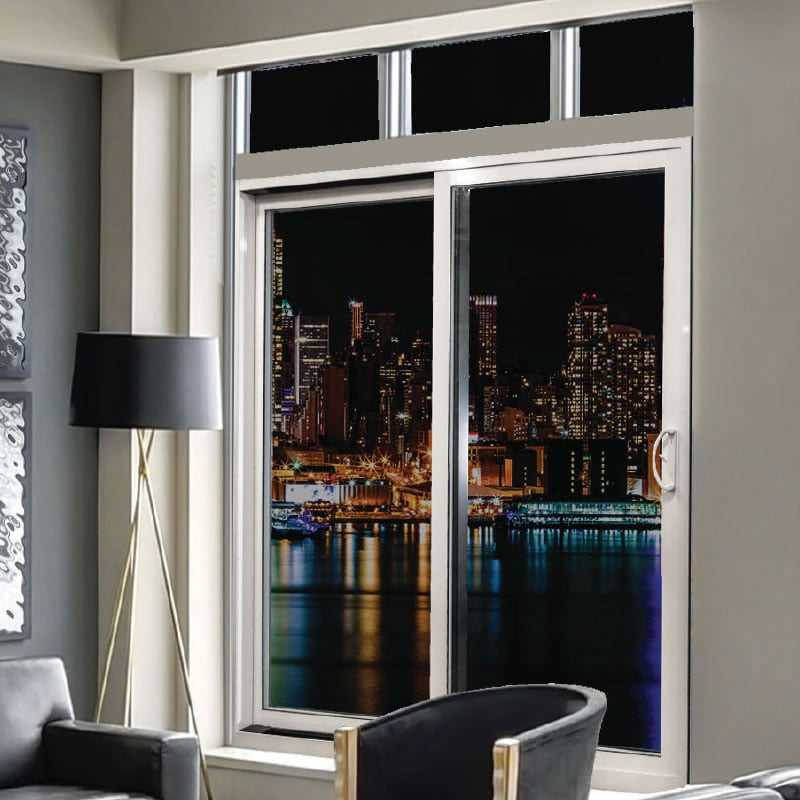

Novatech 2021 Aluminum Series products are the most advanced and flexible aluminum patio doors in today’s demanding market, and perfect for architectural applications, since the customization options are extensive. Whether it’s colour, sill finishes, glass or hardware, the 2021 Series is built to comply with virtually any building requirement.
Design FlexibilityIn the same perimeter frame, doors can be confi gured up to six panels wide with fixed or operable panels and coupling members that join larger doors together. They also fill openings or create continuous glass façades. Transoms and fi xed sidelites can also be added to produce more advanced designs.
Draft ProtectionTo reduce air fl ow through our doors, double-seal weather stripping is used. This plays a key role in maintaining comfortable, draft-free living spaces. The on-going focus on performance and weather resistance also leads to reduced heating and cooling costs.

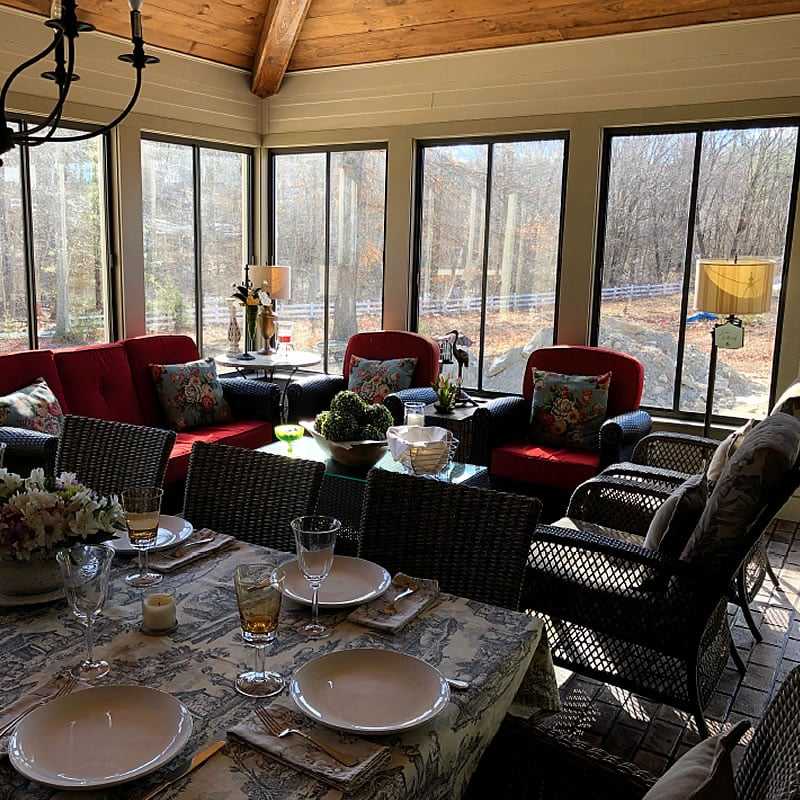

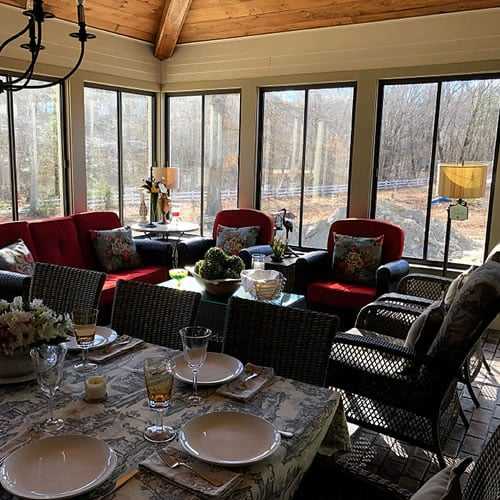

Enhance your home and add living space with a three season porch by using the Series 850 sliding window. This window is specifically designed for porch enclosures, the panels slide so easily and are simple to remove. This window has a frame depth of 2 ¼ and can also be used as a sliding storm window, or a cellar window.
GENERAL: Horizontal sliding window shall be Series 850 asmanufactured by Coastal Industries Inc
MATERIAL: Frames and sash shall be 6063-T5 extruded aluminum alloy with a nominal wall thickness of .062. Standard finish shall be bronze or white baked acrylic enamel. Weatherstripping shall be silicone treated pile.
CONSTRUCTION: Frames shall have an integral fin around the entire perimeter and should be mechanically joined with screwfasteners. The sill shall have a slow pitch with weep slots for adequate drainage. Window panel shall interlock at central meeting rail.
HARDWARE: Moveable sash shall be equipped with an all aluminum spring loaded self-locking latch which shall engageinto the frame jamb. The moving sash shall be equipped with two nylon glide pads.
INSTALLATION: All windows shall be erected by others in accordance with manufacturer’s recommendations without forcing, springing, or twisting. Head and sill members shall be aligned, parallel and square with jambs. A sealant shall be provided by the erector and applied to provide a watertight seal between the windows and surrounding construction.
SCREENS: Shall be Extruded Screen stock, half screens with fiberglass mesh. Optional: full screen. Optional wire: No-See-Um,pet screen and enhance vision.
GLAZING: Shall be factory glazed with 1/2” insulating glass panels. Single glazed option: 1/8” annealed or 1/8” tempered glass.
